TIG welding gives the cleanest, most precise welds of any process, and the right beginner machine makes it far easier to learn. The most important decision is simple: do you need to weld aluminium? If yes, you need an AC/DC machine. If you’ll only weld steel and stainless, a DC-only TIG costs much less.
I compared the TIG welders on sale in 2026 using manufacturer specs, retailer listings and owner feedback. I haven’t used every machine myself, so this guide sticks to verified specs and long-term owner experience. New to the process? Start with our guide to what GTAW (TIG) welding is and how it works.
Quick picks
| Best for | Type | Output | Input | Price class | |
|---|---|---|---|---|---|
| Lincoln Square Wave TIG 200 | Best overall, from a major brand | AC/DC | 10–200 A (125 A on 120 V) | 120/230 V | $2,000–2,500 |
| AHP AlphaTIG 203Xi | Aluminium on a budget | AC/DC + pulse | Up to 203 A | 110/220 V | $800–1,100 |
| ARCCAPTAIN TIG200P | Steel and stainless on a tight budget | DC + pulse | Up to 200 A | 110/220 V | Under $400 |
Prices are typical US prices in October 2026 and change often.
Lincoln Square Wave TIG 200: best overall
The Square Wave TIG 200 is the machine many welding instructors suggest for beginners who want one TIG welder that does everything, with Lincoln’s dealer network behind it.
| Spec | Square Wave TIG 200 (K5126-1) |
|---|---|
| Processes | AC/DC TIG and stick |
| Output | 230 V: 10–200 A TIG, 10–170 A stick. 120 V: 10–125 A TIG, 10–90 A stick |
| Duty cycle (230 V TIG) | 200 A at 25%, 160 A at 40%, 130 A at 60% |
| Duty cycle (120 V TIG) | 125 A at 25%, 85 A at 60% |
| AC controls | Adjustable AC frequency and balance |
| Pulse | Yes |
| Weight | About 46 lb |
| Warranty | 3 years |
Why it’s a good pick: it welds steel, stainless and aluminium, runs on a household 120 V outlet for thin work, and has the adjustable AC balance and frequency you need to learn aluminium properly. Its controls are simple for a beginner, and Lincoln parts and service are easy to find.
Keep in mind: it costs far more than budget brands, and at about 46 lb it’s a shop machine rather than one to carry around. Check exactly what the package includes (torch, foot pedal, regulator) before you buy.
Lincoln Square Wave TIG 200 (K5126-1)Check price on Amazon
AHP AlphaTIG 203Xi: best for aluminium on a budget
AHP’s AlphaTIG has been a hobbyist favourite for years as an affordable way into AC TIG. The current 203Xi is the updated version.
| Spec | AlphaTIG 203Xi |
|---|---|
| Processes | AC/DC TIG with pulse, plus stick |
| Output | Up to 203 A |
| Input | 110/220 V (adapter included) |
| Start | High-frequency start |
| Warranty | 3 years |
Why it’s a good pick: it gives you AC for aluminium, plus pulse and a foot-pedal-ready setup, for roughly half the price of the big brands. Its 3-year warranty is long for a budget machine.
Keep in mind: support and resale value don’t match Lincoln or Miller, and output on 110 V is much lower. Use 220 V for aluminium thicker than about 1/8”. Check the current listing for the included torch and pedal.
AHP AlphaTIG 203XiCheck price on Amazon
ARCCAPTAIN TIG200P: best budget DC TIG
If you only want to TIG weld steel and stainless, for example exhaust parts, brackets or furniture, a DC-only machine saves a lot of money.
| Spec | TIG200P (2025 model) |
|---|---|
| Processes | DC HF TIG, lift TIG, pulse, spot, and stick |
| Output | Up to 200 A |
| Input | 110/220 V dual voltage |
| Controls | LED display, 2T/4T trigger modes |
| Weight | Under about 12 lb |
Why it’s a good pick: HF start, pulse and dual voltage at an entry-level price make it a low-risk way to find out if you enjoy TIG.
Keep in mind: it can’t weld aluminium, because that needs AC. Like most budget machines, it delivers much less on 110 V than the headline 200 A, and it isn’t built for all-day production work.
ARCCAPTAIN TIG200P (DC)Check price on Amazon
Step-up options
If you already know you’ll TIG weld a lot, these are worth a look at welding suppliers:
- Primeweld TIG225X: a 225 A AC/DC machine with strong value for the money, sold mainly direct. It’s heavy (about 90 lb).

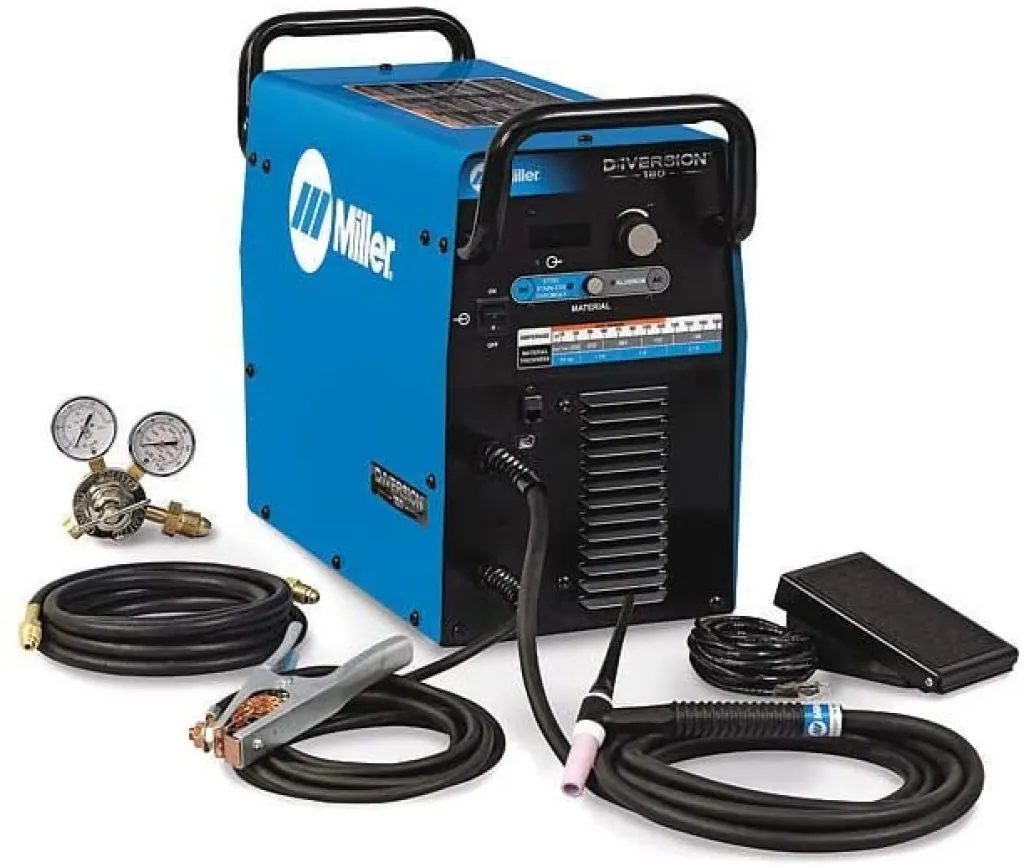

- Miller Diversion and Dynasty series: premium AC/DC machines with excellent arc quality and dealer support, at a much higher price.
TIG or MIG: which should a beginner buy?
| TIG | MIG | |
|---|---|---|
| Weld quality and looks | Best: clean, precise, no spatter | Good, with some spatter |
| Speed | Slow | Fast |
| Learning curve | Steep: two hands and a pedal | Easiest: pull the trigger |
| Thin metal | Excellent | Good |
| Aluminium | Excellent (AC TIG) | Possible with a spool gun |
| Outdoors | Poor (gas blows away) | Poor (good with flux-core) |
| Typical uses | Stainless, aluminium, art, motorsport, precision parts | Fabrication, repairs, car bodies, general shop work |
Choose TIG if you care most about precision and appearance, or you’ll weld stainless steel and aluminium. Choose MIG if you want to build and repair things quickly. Many hobbyists start with MIG, then add TIG later.
Budget: what it really costs to start
| Item | Budget setup | Mid-range setup |
|---|---|---|
| Welder | DC TIG, under $400 | AC/DC TIG, $800–2,500 |
| Argon cylinder and regulator | $250–450 (buy or lease) | $250–450 |
| Helmet, gloves, jacket | $100–200 | $200–400 |
| Tungsten, filler rod, cups | $50–100 | $50–100 |
| Total | about $800–1,150 | about $1,300–3,450 |
These are rough ranges, and the gas cylinder costs vary widely by region and supplier.
How to choose a TIG welder
AC/DC or DC only?
- DC only: welds mild steel, stainless steel, chromoly, copper and titanium. It’s cheaper.
- AC/DC: adds aluminium and magnesium. If there’s any chance you’ll want to weld aluminium (trailers, boats, intakes, brackets), buy AC/DC from the start.
HF start or lift start?
- High-frequency (HF) start starts the arc without the tungsten touching the metal. It’s cleaner and easier for beginners, and it’s essential for good AC aluminium welding.
- Lift-arc means you touch the tungsten down and lift it to start. It’s fine for DC steel, but it’s easier to contaminate the tungsten.
Foot pedal
A foot pedal lets you change amps while you weld, which makes learning much easier, especially on aluminium and thin metal. Make sure your machine supports one, and check whether it’s included.
Pulse, AC balance and frequency
- Pulse switches between high and low current many times a second. It controls heat on thin metal and stainless and helps you keep a steady rhythm.
- AC balance sets how much cleaning versus penetration you get on aluminium.
- AC frequency controls how wide or focused the arc is. A higher frequency gives a narrower, more precise bead.
120 V or 240 V?
Dual-voltage machines are the most flexible. 120 V is fine for thin steel and stainless; 240 V gives full power for aluminium and thicker metal.
Duty cycle
Most TIG work is done well below maximum amps, so duty cycle matters less than for stick or MIG. Check the duty cycle at the amps you’ll actually use.
What else you need to start TIG welding
| Item | Notes |
|---|---|
| Argon cylinder | 100% argon. Buy or lease from a welding gas supplier |
| Regulator / flowmeter | Set 15–25 CFH |
| Tungsten | 2% lanthanated (blue) works for both AC and DC |
| Filler rod | ER70S-2 for steel, 308L for stainless, 4043 or 5356 for aluminium |
| TIG gloves | Thin goatskin for feel |
| Helmet | Auto-darkening, shade 10–13 |
| Stainless wire brush and acetone | TIG needs very clean metal |
The gas setup can add a few hundred dollars to the total, so include it in your budget. Our GTAW guide has starting settings for steel, stainless and aluminium.
Beginner tips
- Start with clean, 1/8” mild steel and practise running beads without filler first, so you learn to control the puddle.
- Keep the arc short, about the tungsten diameter, with the torch tilted 10–15°.
- Add filler to the front edge of the puddle in small dabs.
- Don’t touch the tungsten to the puddle or filler. If you do, stop and regrind it.
- Move on to aluminium once you’re comfortable on steel. It needs more heat at the start, then less as the part heats up.
FAQ
What is the best TIG welder for a beginner?
For one machine that does everything, the Lincoln Square Wave TIG 200. For aluminium on a budget, the AHP AlphaTIG 203Xi. If you’ll only weld steel and stainless, a DC-only machine like the ARCCAPTAIN TIG200P is the cheapest way to start.
Do I need AC to TIG weld aluminium?
Yes. Aluminium needs AC to break up its oxide layer. DC-only TIG welders can’t weld it properly.
Is TIG welding hard to learn?
It’s the hardest of the common processes, because it uses both hands and usually a foot pedal at once. Most people can lay decent beads on steel after a few weekends of practice.
Can you TIG weld on 120 V?
Yes, for thin steel, stainless and thin aluminium. For aluminium thicker than about 1/8”, use 240 V.
Can I use a TIG welder for stick welding too?
Most modern TIG machines, including all three here, also do stick (SMAW), which is handy for outdoor or rusty-metal repairs.
How this guide was researched: specs come from Lincoln Electric and retailer product listings and independent reviews, checked in October 2026. Budget-brand specs come from the sellers’ listings. Always confirm the exact model and package contents before you buy. See how I test and review.
